Murphy Beds Dimensions: How Much Space Do You Need for It?

When purchasing one of these beds, you must understand Murphy Beds dimensions. Learning about how to measure space for your new Murphy bed will ensure you have a smooth and simple installation.
By
Romeo Vitelli
Romeo Vitelli
Expert Writer
Received his doctorate in Psychology in 1987, spent fifteen years as a staff psychologist in Millbrook Correctional Centre. In 2003 went into full-time private practice. read more
reviewed
Reviewed By
Medical Advisory Team
Medical Advisory Team
Includes well-known professionals, who together provide decades of sleep medicine experience that enables Talk About Sleep to fulfill its mission of creating access to high- read more
Last updated: August 31, 2023
TalkAboutSleep is reader-supported. We may earn a commission through products purchased using links on this page. Learn more about our process here

A Murphy Bed Trusted Source A Reawakening of the Space-Saving Murphy Bed - The Washington Post The Murphy bed admittedly is no longer in its heyday, when 50,000 beds a year were produced by Murphy Bed Co. www.washingtonpost.com , also known as a wall bed or a pull-down bed, is the ideal space-saving option for small rooms or apartments. These beds are designed to fold up into the wall. When the bed is not in use, it can be neatly tucked away, allowing you to have more floor space.

While Murphy beds once had a bad reputation for accidentally springing up and causing injuries, today’s beds are designed with more reliable locking mechanisms, ensuring that they remain in place.

It is essential to know how to measure for a murphy bed to avoid any issues after you buy one. Here we will discuss the different ways to measure the dimensions of a murphy bed and how to choose a suitable mattress.

The Top Benefits of Owning a Murphy Bed

If you are still on the fence about whether you should purchase a Murphy bed or not, here are some of the critical benefits of these unique beds for you to consider.

  • Murphy beds save a lot of space in small rooms and apartments and allow you to have more floor space when not in use.
  • A genuine Murphy-brand is the highest quality wall bed on the market.
  • Murphy beds are easy to use once you grow accustomed to how they work.
  • These beds can be just as comfortable as traditional beds.
  • You can customize your Murphy bed to suit your needs with add-on cabinets for extra storage.
  • Murphy beds complement any type of home décor.

Measuring for a Murphy bed

It’s always essential that you measure the space where you plan to install your murphy bed. Many times, people will only focus on the height and weight of the bed once it is tucked away. They, unfortunately, forget to think about the measurements of the bed once it’s unfolded to be used.

If you are considering purchasing a murphy bed, it’s also crucial that you think about the two main types of these beds that are available, which are the wall-mounted and freestanding murphy beds. As the names imply, you must anchor the wall-mounted bed to the wall and the floor in some cases. That will require you to do a little extra work when installing it. The freestanding bed is slightly sturdier; however, it is more suitable for people in temporary living situations such as renters.

Whenever you measure a room for a murphy bed, you will need to think about the bed’s height, width, and depth when it is in the closed position. It is also essential to determine the size of the space the bed will take up when it is open and ready for use. That is known as the projection of the bed. It is the length from the edge of the bed frame to the wall. Knowing what these dimensions are ahead of time will give you a clearer understanding of what size bed will fit your space.

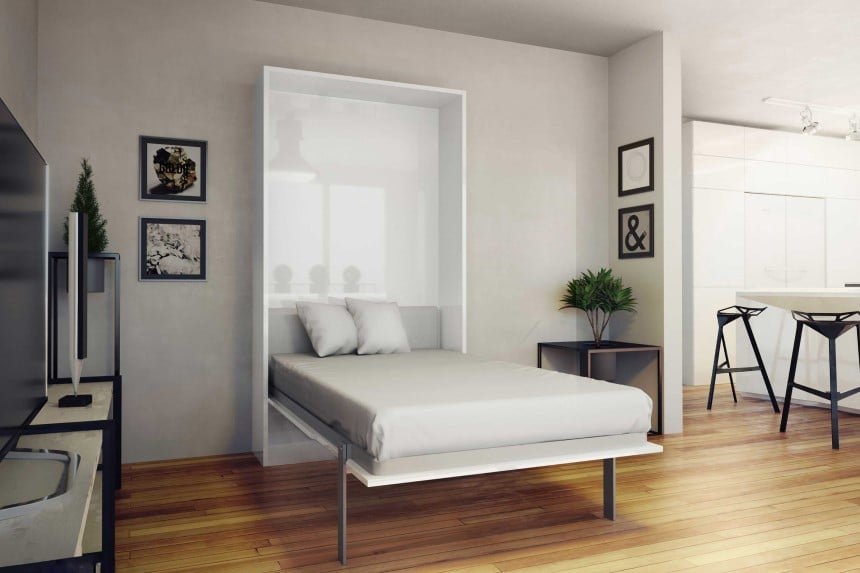

Vertical Murphy bed

Murphy Beds Dimensions: How Much Space Do You Need for It?
This is the classic style that is most often shown in movies and commercials.

A vertical murphy bed is the most common of them all. They resemble a standard bed frame when they are in an open position. The vertical model makes it possible to lie down on the bed from either side. Vertical murphy beds are ideal for spaces that have plenty of ceiling height to accommodate the included cabinet. When considering the height of the bed and your space, it’s essential to account for anything on the ceiling that could get in your way, such as a ceiling fan. When you pull down the bed, make sure you have enough clearance to avoid these obstructions.

The chart below shows the most common dimensions for vertical murphy beds.

After you have determined the size you would like to purchase, you must make sure you have adequate ceiling height and enough floor space for the bed to fit without issues. You will need to leave at least 30 to 36 inches on each side of the bed. That will allow you to move freely around the bed if needed.

Mattress Size Height (in.) Width (in.) Depth (in.) Projection (in.)
Twin 45-48 80-85 16-20 44-46
Twin XL 45-48 85-90 16-20 44-46
Full/Double 62-64 80-85 16-20 58-60
Queen 68-70 85-90 16-20 65-68
King 68-70 85-90 16-20 78-80

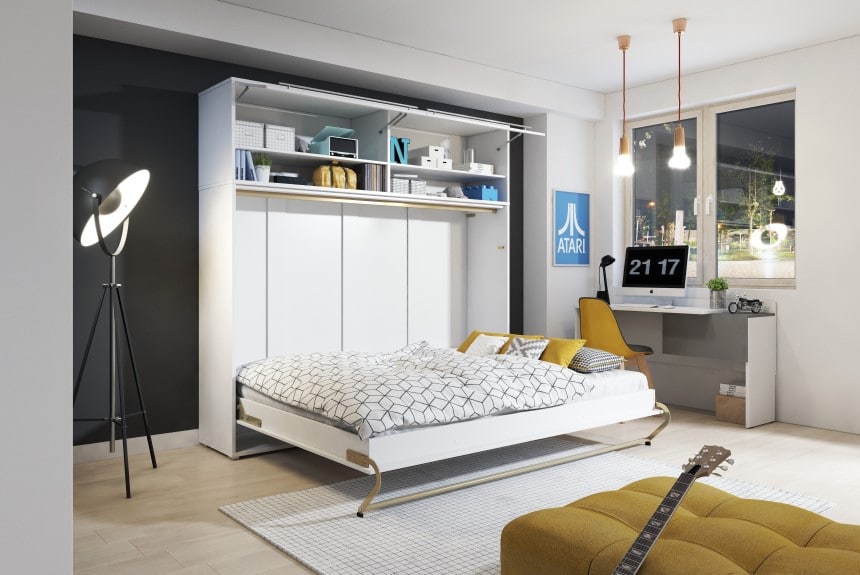

Horizontal Murphy bed

Murphy Beds Dimensions: How Much Space Do You Need for It?
A horizontal wall bed is wider but shorter, as the bed is laid out horizontally against the wall.

A horizontal murphy bed may not be as common as the vertical style, but they are also good options, especially for a small room such as a guest room or child’s bedroom. They are suitable for any room that has a low ceiling. Horizontal Murphy beds are side-mounted. It means you can only access the bed from the side that is not attached to the wall.

The chart included below shows the typical dimensions for most horizontal murphy bed models.

Mattress Size Height (in.) Width (in.) Depth (in.) Projection (in.)
Twin 45-48 80-85 16-20 44-46
Twin XL 45-48 85-90 16-20 44-46
Full/Double 62-64 80-85 16-20 58-60
Queen 68-70 85-90 16-20 65-68
King 68-70 85-90 16-20 78-80

Measuring for a Murphy side cabinet

Most murphy bed models also feature a side cabinet located on either one or both sides of the bed. These can be very convenient because they have extra shelving for books or collectibles. You can also use these cabinets for additional storage space. When you measure your space for a new Murphy bed, you mustn’t forget to measure for the cabinets if you want your new bed to having this added feature.

Murphy bed cabinets have a typical height of around half an inch or an inch under the top of the bed when it is in the closed position. That is true for both vertical and horizontal Murphy bed models. The depth of the cabinet often measures the same as the bed.

The width of the side cabinets can vary between 18 to 30 inches. Since they vary so much in size, you must measure your wall and space correctly to have adequate space to accommodate the width of the side cabinet.

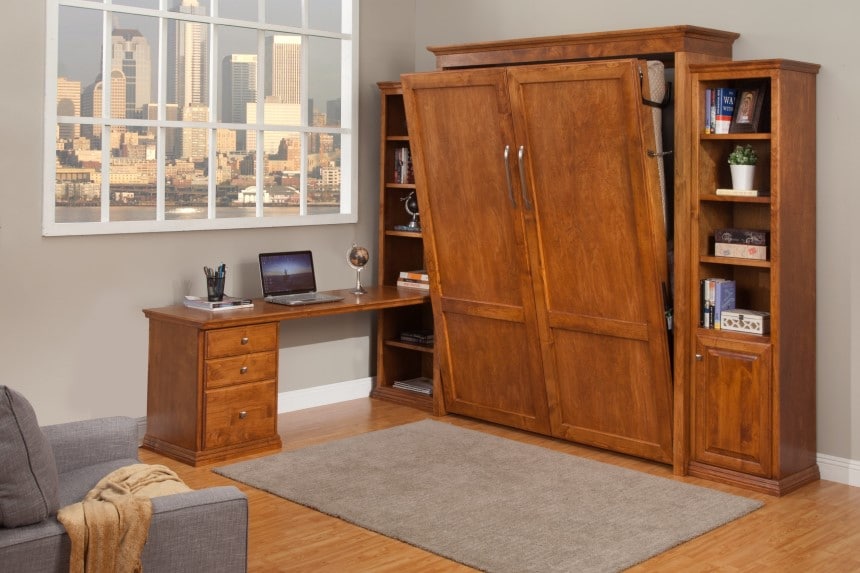

Vertical Murphy side cabinet

Murphy Beds Dimensions: How Much Space Do You Need for It?
The benefit of the extra storage space is well worth it.

A Murphy bed with a vertical side cabinet is ideal when you want to add some extra storage space to your bedroom. Side cabinets are available in a variety of options. You can choose from cabinets with all open shelves or one with doors and drawers that are fully enclosed.

To account for the complete width of the project, when you purchase one or more side cabinets with a Murphy bed, you will simply need to add all the widths together. The height of many side cabinets is usually slightly below the Murphy bed’s crown molding, and they are also smaller in-depth than the bed. But it’s still essential to determine the exact depth and height measurements since these can differ.

The side cabinets are usually easy to install next to the bed on either the right or left side. They can even be installed in between two murphy beds if you want. It is standard for all cabinet doors to swing away from the murphy bed.

Mattress Size Height (in.) Width (in.) Depth (in.)
Twin 79.25 18/24/30 16
Twin XL 84.75 18/24/30 16
Full/Double 79.25 18/24/30 16
Queen 84.75 18/24/30 16
King 84.75 18/24/30 16

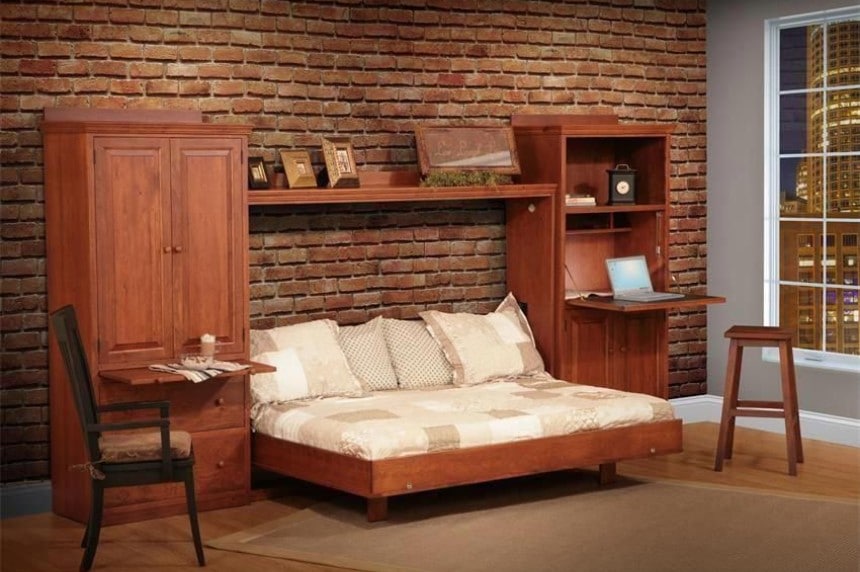

Horizontal Murphy side cabinet

Murphy Beds Dimensions: How Much Space Do You Need for It?
When you have more space available along the width of a wall rather than the height, horizontal Murphy beds make perfect sense.

A horizontal Murphy side cabinet will make a great addition to any room it is placed in. this provides you with much-needed extra space to store clothing, collectibles, and other items. Like the vertical side cabinets, horizontal Murphy side cabinets can vary in style. You can purchase a horizontal side cabinet is open shelves or one with enclosed doors and drawers. Remember that when you measure for your new Murphy bed, the total width of all items, including the bed and any additional cabinets added up, will be your total width. The depth and the height of these cabinets can differ from one style to the next. Therefore, you will need to measure these accurately to get the correct dimensions.

Mattress Size Height (in.) Width (in.) Depth (in.)
Twin 43 18/24/30 16
Twin XL 64 18/24/30 16
Full/Double 58 18/24/30 16
Queen 64 18/24/30 16
King 64 18/24/30 16

How to choose a suitable mattress for a Murphy bed: Tips

For most Murphy beds, the frames are designed to fit a mattress that measures 12 inches thick. Since most mattresses on the market today are between 9 and 12 inches in thickness, it is not too hard to find a mattress to fit your Murphy bed perfectly.

Most mattresses, including latex, memory foam, hybrid, and innerspring, can be placed on a Murphy bed. However, slumping is often a big issue when it comes to wall beds. Because the mattress must stay upright during the day, the pressure can lead to bunching on both ends of the mattress.

Slumping is a common issue with hybrid and innerspring mattresses since the coil springs weigh more. That creates additional pressure on one end of the mattress. For that reason, most Murphy bed retailers will suggest using either memory foam or latex foam mattresses instead. That is because foam mattresses are more durable and will not bunch up as severely as innerspring or hybrid mattresses.

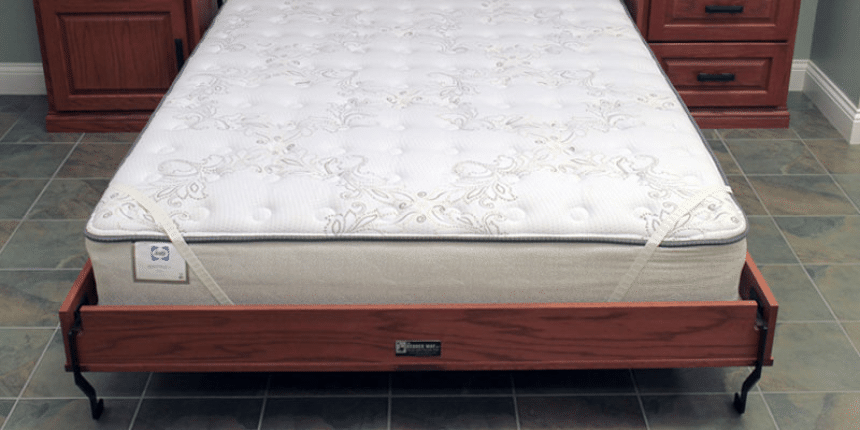

Murphy Beds Dimensions: How Much Space Do You Need for It?
Memory foam and latex mattresses do best when paired with a Murphy bed.

What to Look for When Buying a Murphy Bed

Along with making sure you have the correct dimensions, there are several other things you will want to look for when buying a Murphy bed. These beds have a variety of features to offer, and the modern styles of Murphy beds Trusted Source The $1 million studio with hidden rooms For $1 million, you get a two-bedroom apartment in Manhattan with seating for 12 – and it’s all inside a studio. money.cnn.com include extras that make them a desirable choice.

When buying your new Murphy bed, you will want to pay attention to the different

  • Styles
  • Finishes
  • Dual Functions such as converting into a desk, table, or sofa
  • If the bed is horizontal or vertical

FAQ

If you are ready to purchase a new Murphy bed, there are a few things you need to consider first.

  1. Why Are They Called Murphy Beds?

One of the most common questions customers have about the Murphy bed is where it got its name. As most people would expect, the Murphy bed got its name from the person who invented it, William L. Murphy. Murphy designed the bed around the 20th century because he wanted to create a bed that would neatly fold up into a closet and save space inside his small apartment. He founded the Murphy Wall Bed Company and patented his invention in 1911.

  1. Are Murphy bed freestanding or attached to walls?

You can buy Murphy beds that are either freestanding or those that attach to the wall. The freestanding beds can be sturdier than those installed on the wall. Still, they are intended for temporary use by renters and other owners who would not use the bed for an extended period.

  1. Can a Murphy bed ruin a mattress?

Because they are prone to bunching, innerspring and hybrid mattresses can become ruined if used with a Murphy bed. That is because they spend so much time sitting upright, and bunching will occur at either one or both ends. A high-quality foam mattress, however, will not be ruined if used with a Murphy bed.

  1. Is a Murphy bed long-termed?

You can use a Murphy bed long-term, and it can make a great addition to your guest room or a child’s bedroom.  However, it is suggested that if you do, you purchase a wall-mounted Murphy bed instead of a freestanding model.

  1. Are Murphy beds dangerous?

There are several documented cases from years ago where Murphy beds that accidentally sprang into the wall caused severe and sometimes fatal injuries. But the fact is, you are more likely to become hurt falling out of bed than getting crushed inside a Murphy bed.

Today Murphy beds feature locking mechanisms that are far more effective than they were in years past. So severe accidents and injuries associated with Murphy beds are a thing of the past.

  1. Are Murphy Beds Comfortable to Sleep in?

Murphy beds can be very comfortable to sleep in. The comfort level of your Murphy bed depends on the mattress you use with it. There are several options where you can purchase a mattress and a bed separately, allowing you to choose a quality mattress based on your personal preferences.

Final thoughts

A Murphy bed can provide you with an ideal solution when you want a comfortable full-sized bed but do not have a lot of space to work with. You can figure out the Murphy beds frame dimensions for a full-size mattress. A Murphy bed makes it possible to have a queen or king-sized mattress in a small space. And there’s no need to configure any queen-size Murphy bed dimensions so you can use a larger mattress. These beds can include a side cabinet excellent space-savers and are ideal for small bedrooms and apartments with limited space.

If you are thinking about buying one of these compact beds for your home, be sure to take all of the Murphy beds dimensions into consideration, and don’t forget to measure for the bed when it is folded up and when it is open. Be sure to refer to the charts provided in this article to help you determine the correct dimensions for the various Murphy bed sizes.
